Description

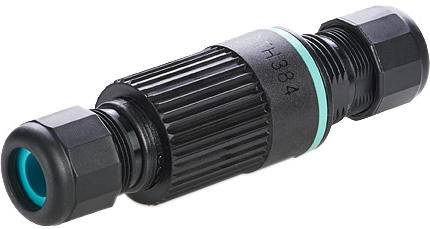

Techno AquaSafeTee IP68 Plug-Socket 3 Pole 17.5A 400V THR.384.S3A
Specification
Cable Entries – 1
Number of Poles – 3
Terminal Type – Screw (M3 – max. 0.8 Nm)
Body Material – PA66 UL94 V2 GWT 850°C
Protection Against Solid/Water (IP) – IP66/IP68 (5m/3h)
Protection Against Impact (IK) – IK07
Max Current (A) – 17.5
Max Voltage (V) – 400V AC
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Maximum Cable Diameter (mm) – 12
