Axial Fan 80x80x38mm 240V AC

SKU: 3E-230B Categories: ,
ENQUIRE

Description

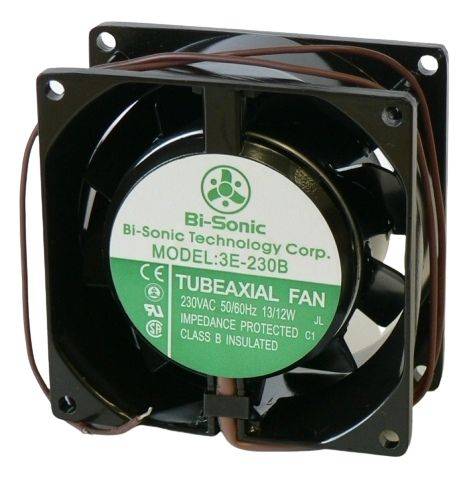

3E-230B – 80mm x 80mm x 38mm 230v AC Ball Bearing Fan

– Brand: Bi-Sonic
– Construction: die-cast aluminium housing, metal impeller, shaded pole motor
– Impedance protected
– Complete with leads
– Operating temperature: -30°C to +75°C
– Dimensions: 80mm x 80mm x 38mm
– Rated voltage: 230v
– Frequency: 50/60Hz
– Input power: 13/12w
– Max. rated current: 85/75mA
– Speed: 2700-3100 RPM
– Max. air flow: 0.74-0.91 cubic metres per minute (26-32 cubic feet per minute)
– Max. pressure: 2.9-3.4 mmH2O (0.11-0.13 inchH2O)
– Noise: 31-34 dB
– Weight: 420g

Specifications

Tube axial fan info.pdf
